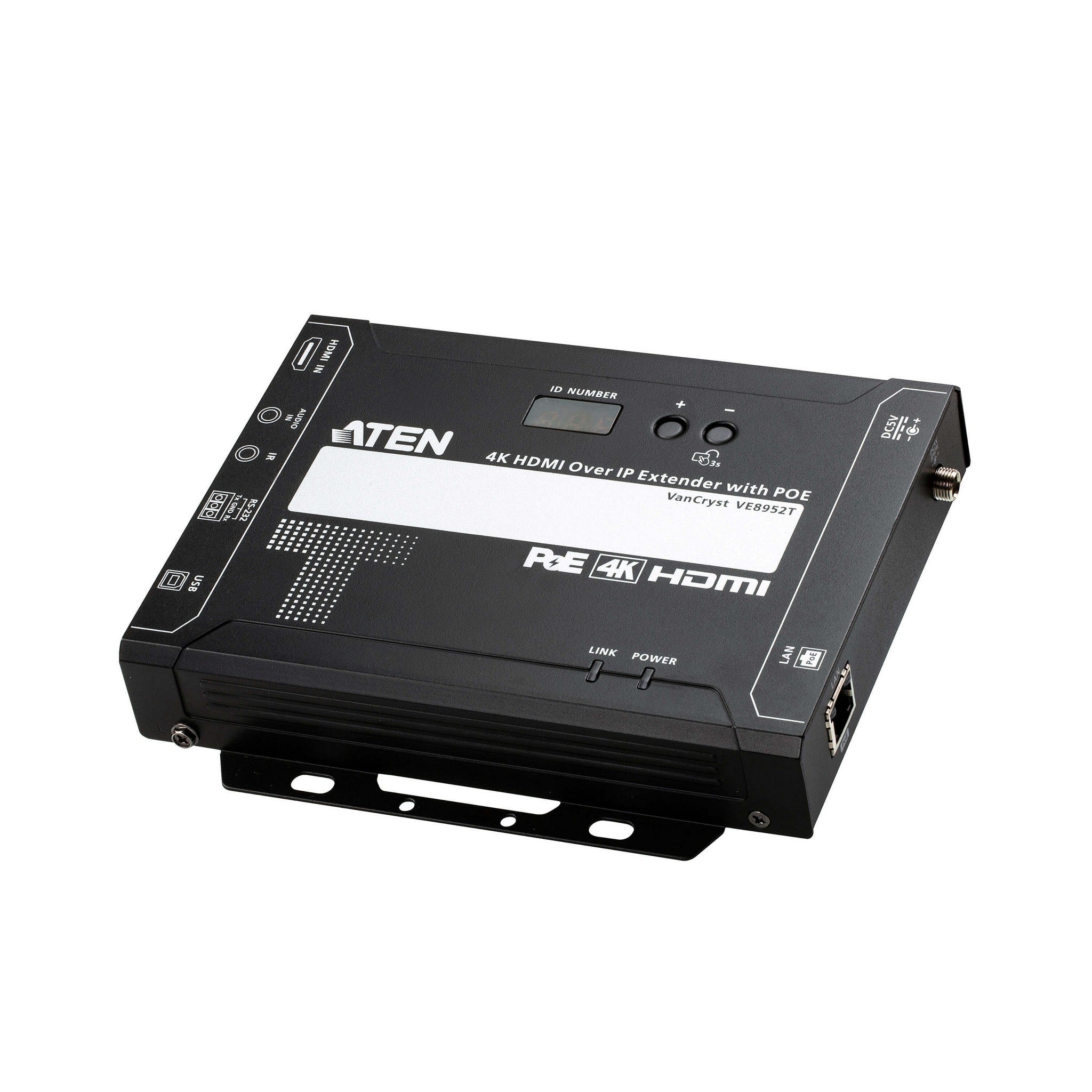

The ATEN VE8952T is a game - changing 4K HDMI over IP transmitter with PoE. It sends visually lossless 4K AV signals over long distances via a standard Gigabit network, all with low latency. This is the perfect solution for system integrators facing challenges when deploying AV over IP. Whether you have a simple point - to - point setup or hundreds of endpoints, it offers great flexibility, scalability, and multi - functionality in extender, splitter, matrix switch, and video wall applications. You can easily switch input sources using the top panel pushbuttons and ID display. And the simple configuration doesn't require in - depth IT knowledge. Log in to any transmitter through the intuitive web GUI with drag - and - drop operation to effortlessly manage your AV over IP system. Expand your AV network coverage without cable mess or extra network switches, and also reduce per - port costs. With PoE support, place the VE8952T units where you need them most, no need for additional power cabling and outlets. Use the dedicated app (VE8950/VE8900 Control App) to manage and control any VE8952T, allowing instant preview, monitoring, and switching of video sources for streamlined operations. Key features include delivering high - quality 4K video up to 30 Hz 4:4:4 visually lossless, using ATEN's advanced video lossless compression technology for stunning video quality. The EDID Expert selects the best EDID settings for smooth power - up, high - quality display, and optimal video resolution across different screens. You can choose from different video compression rates like Smooth, Balance, and High Quality based on your usage. Locate the device anywhere without extra power cabling. Extend AV connections from point - to - point to multi - point setups via LAN without distance limits. It has multi - functionality in various applications and can mix and match the latest 4K displays with a built - in scaler. It's an integrated solution compatible with the ATEN Control System and offers effortless operation with one - click control of related equipment. Technical specifications cover video input, audio input, connectors, power, control, and environmental and physical properties.

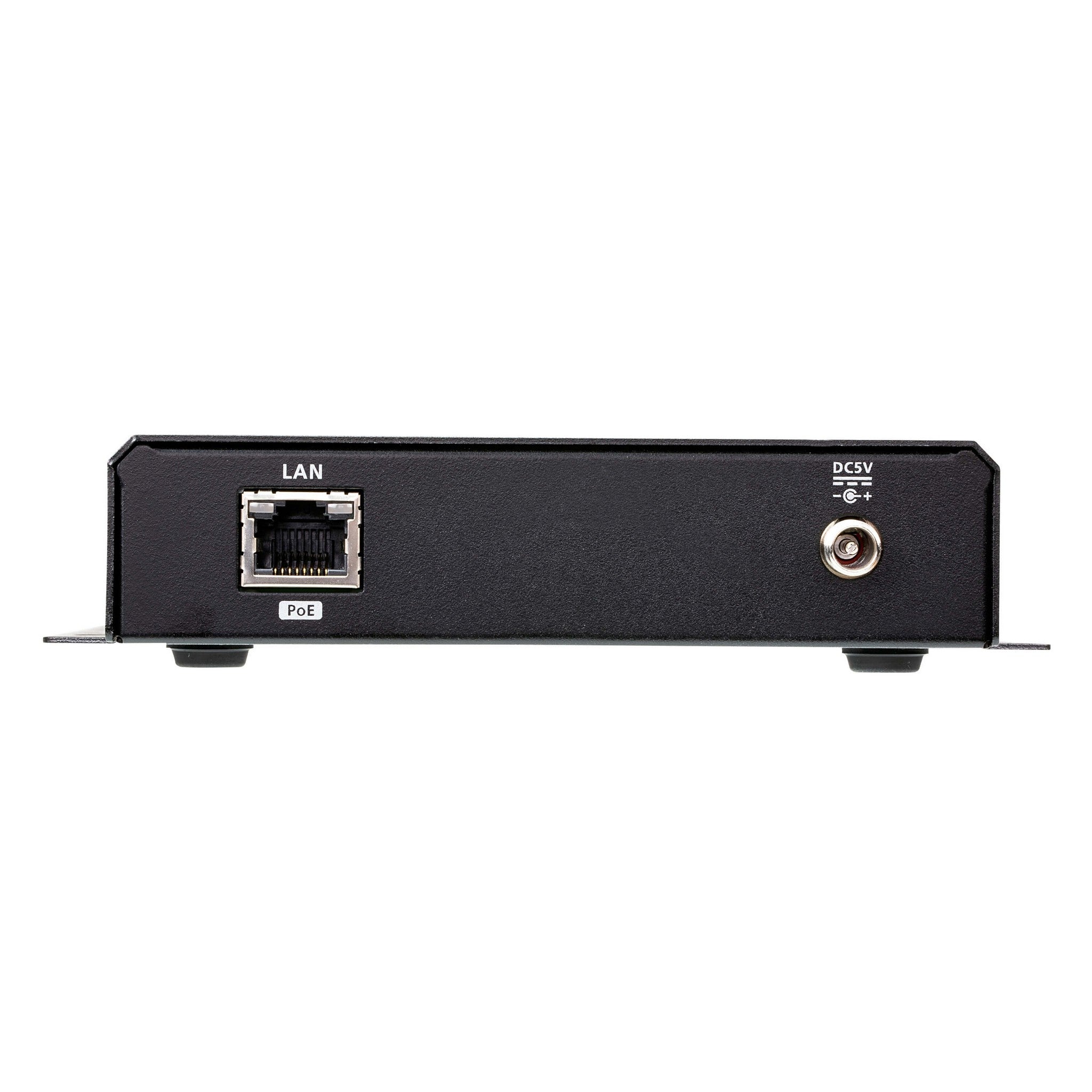

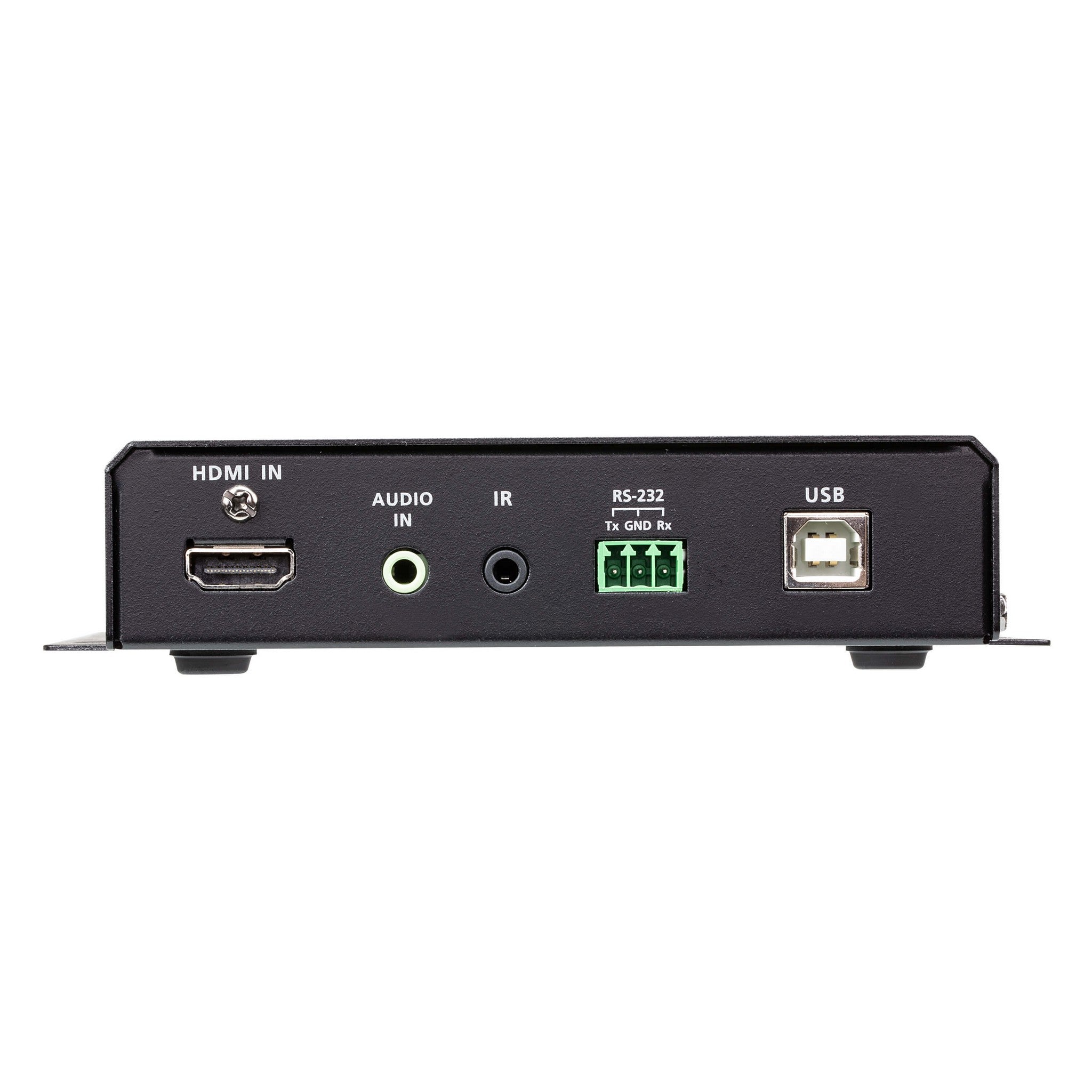

Using the ATEN VE8952T is a breeze. First, connect the HDMI cable from your video source to the HDMI Type A Female (Black) input on the transmitter. For audio, you can use either the HDMI connection or the Mini Stereo Jack Female (Green) input. Connect the unit to the network using the RJ - 45 Female connector. If you want to use PoE, just plug in the RJ - 45 cable that supports it; otherwise, use the DC Jack (Black). To select the ID number, use the two push buttons. You can manage the unit through the web GUI. Just log in and use the drag - and - drop operation. Or, you can use the dedicated app (VE8950/VE8900 Control App) for instant preview, monitoring, and switching of video sources. When it comes to maintenance, keep the device in a clean and dry environment. The operating temperature should be between 0 - 40 Degrees C, and the storage temperature between - 20 - 60 Degrees C. The humidity should be 0 - 80% RH, non - condensing. If you need to move the device, handle it gently as it has a metal housing. And always make sure to turn off the power before making any cable connections or disconnections.
