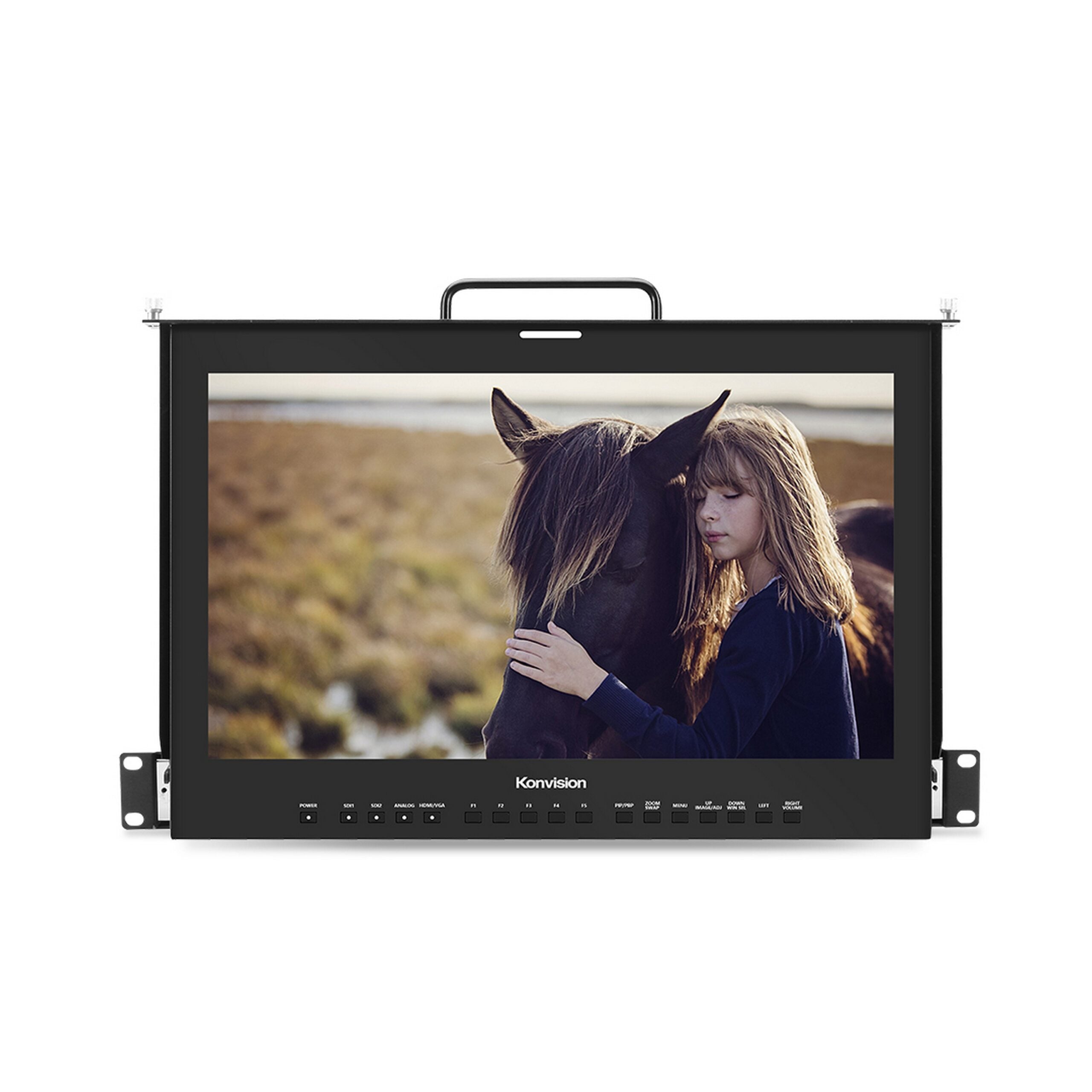

The Konvision KFM-1753W is a remarkable 17 - inch 1RU rack - mount drawer monitor. It features a full HD 1920x1080 resolution and comes with built - in 2x3G - SDI inputs and outputs. With functions like waveform, vectorscope, and audio meter display, it's an ideal studio monitor for news rooms, control rooms, and post - production work. It offers 3D LUT color calibration, compatible with ColorSpace and Calman software, and can use a K10 - A probe for precise color. Works well with universal colorimeters too. The Darkness Check function enhances shadow details in dark areas. The Part Zoom In lets you see picture details clearly. PIP & PBP allow two SDI signals to display on the screen at once. Pixel Measurement helps get real - time Y&RGB values. Waveform (Alarm), Vectorscope, and other displays are available, and False Color helps check image exposure. Focus Assist and Zebra features assist camera operators. The Picture Flip function is useful in studios. Key features include a 17.3” 1920x1080 native resolution, 3G - SDI 4:4:4 12 - bit signals, multiple input and output options, and more. Technical specs cover panel details, input/output formats, audio features, and general operating conditions.

Using the Konvision KFM - 1753W monitor is straightforward. First, connect the power supply using the provided power adapter and make sure the input voltage is set to DC 12V. Then, connect your desired input source, such as SDI, DVI, or composite video, according to your needs. For color calibration, use the compatible ColorSpace or Calman software along with the K10 - A probe. When using functions like Darkness Check or Part Zoom In, just select the option on the monitor's menu. Remember to operate the monitor within the temperature range of - 10 to 50 degrees Celsius. If there's no signal input for a while, the power - saving mode will turn off unimportant keys automatically. For maintenance, keep the monitor clean by using a soft, dry cloth. Avoid exposing it to direct sunlight or extreme humidity. If you have any issues, check the connections first and then refer to the user manual.
