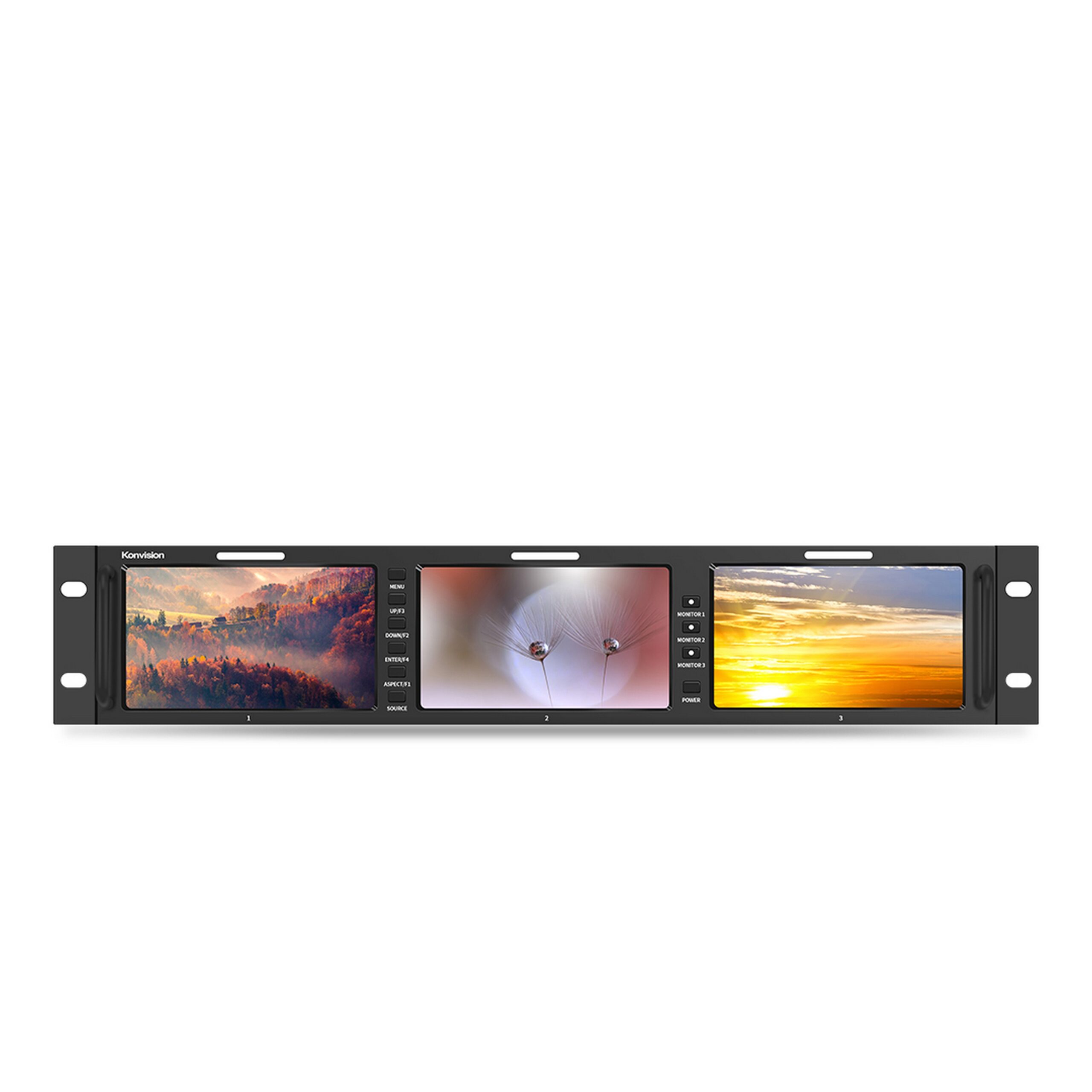

The Konvision KRM-503A is a top - notch triple rack - mount monitor. With three 5.5 - inch IPS LCD panels offering a sharp 1920x1080 FHD resolution and a wide 170 - degree viewing angle, it's ideal for both OB trucks and studios. It comes with a special 2RU compact design. This monitor supports full - screen waveform, vectorscope, and audio meter display. It also features 3D LUT color calibration, compatible with ColorSpace and Calman software, using the K10 - A professional probe for precise color. It can work with universal colorimeters like CA210, CA310, CS200, CR100, CR250, and X - Rite i1 Display. The SDI input can show waveform, vectorscope, and histogram simultaneously on the screen. When luminance reaches or exceeds the preset value, over - exposed areas are marked red. It has various useful markers such as CC, Markers, UMD, Audio Meter, and Time Code. Key features include a 1920 x 1080 FHD resolution IPS LCD panel, composite video input, dynamic UMD TSL3.1/4.0, scan, blue only/mono options, 1x3G/HD - SDI in and out for each screen, and a sleek aluminum alloy casing with tally function. Technical specs cover a wide range of input/output options and compatible SDI formats, with an operating temperature from - 10 to 50 degrees Celsius and a 34W power consumption.

Using the Konvision KRM-503A is easy. First, connect the power adapter to a 100 - 240V AC power source, which will convert it to the required 12V DC for the monitor. Then, use the appropriate cables to connect your video sources to the SDI, analog video, or HDMI inputs on each screen. For audio, connect it to the SDI audio input. You can view waveform, vectorscope, and other useful displays on the screen. When setting up color calibration, use the compatible software like ColorSpace or Calman along with the K10 - A probe. As for maintenance, keep the monitor in a clean and dry environment. Avoid exposing it to extreme temperatures outside the - 10 to 50 degrees Celsius range. If there's no signal input for a while, the monitor will automatically enter power - saving mode. When not in use, turn it off properly and cover it to protect it from dust. Make sure to use the provided power cord and rack - mount brackets for proper installation.
